STEPPERONLINE Short Body Nema 17 Bipolar Stepper Motor 1A 22.6oz.in/16Ncm DIY CNC Extruder

Small Size, Short Height
16Ncm(22.6oz.in) holding torque
NEMA 17 bipolar 1.65×1.65×0.79 4-wire
1.8 deg. step angle(200 steps/rev)
Rated current 1.0A & resistance 3.5ohms

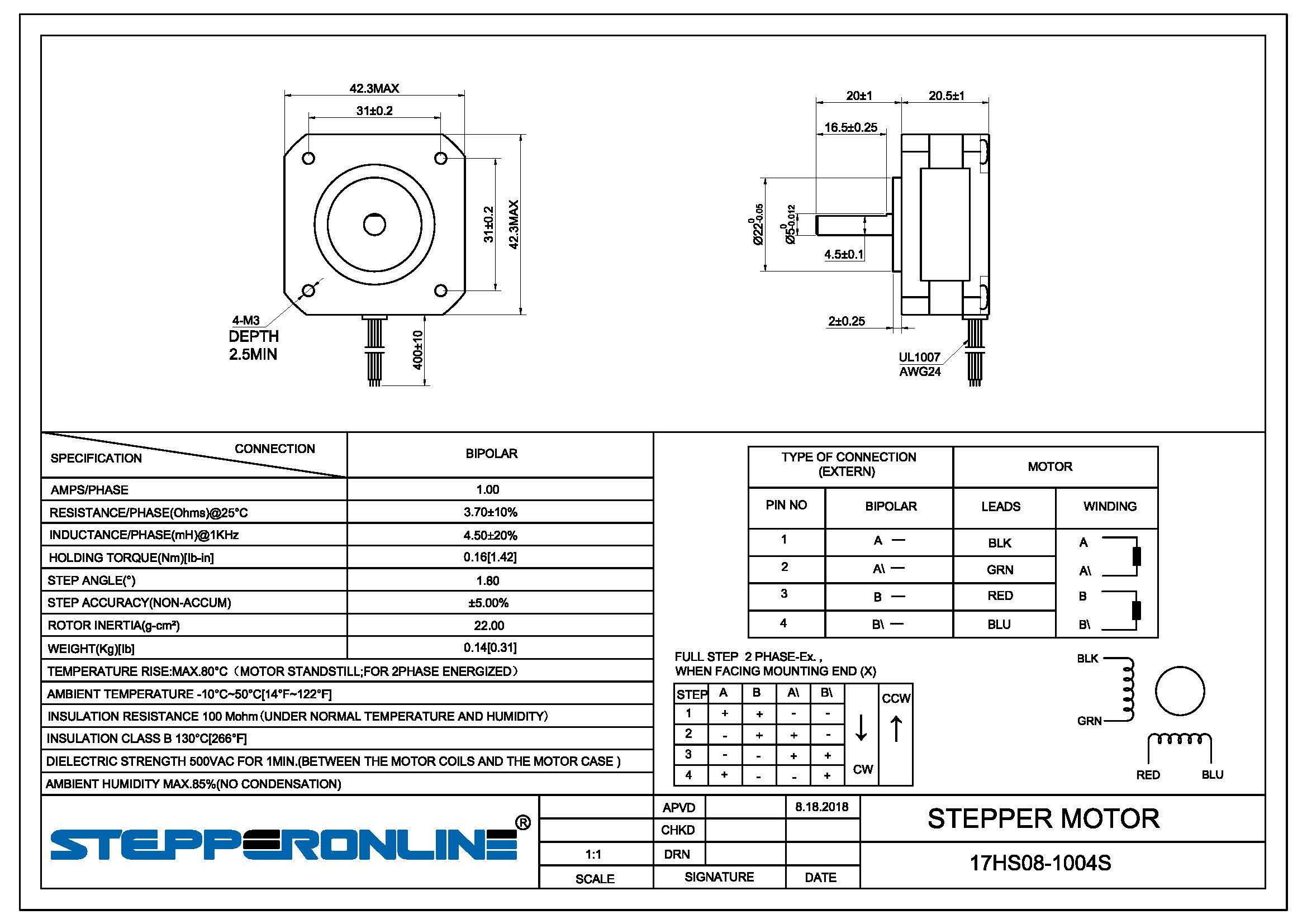

Product description Nema 17 Stepper Motor 1.0A 16Ncm Reliable and Stable Performance STEPPERONLINE focus on the quality of stepper motors and minimizes the rate of defective ones, which ensure that customers can get the most reliable and stable stepper motors. Low Noise 1.Use excellent materials; 2. Reasonable stepper motor design structure 3. High Precision motor assembly, which makes STEPPERONLINE’ stepper motors stand out by providing quieter and smoother operation Electrical Specification Motor Dimension Warning Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor. Physical Specification STEPPERONLINE High Quality with Global Standards Flexible Customization
