SDI Capture Card USB 3.0, SDI to USB 3.0 with HDMI Loopout, 1080P 60Fps SDI HDMI Video Audio Capture for Game Streaming Video Recording for Windows, Linux, OS

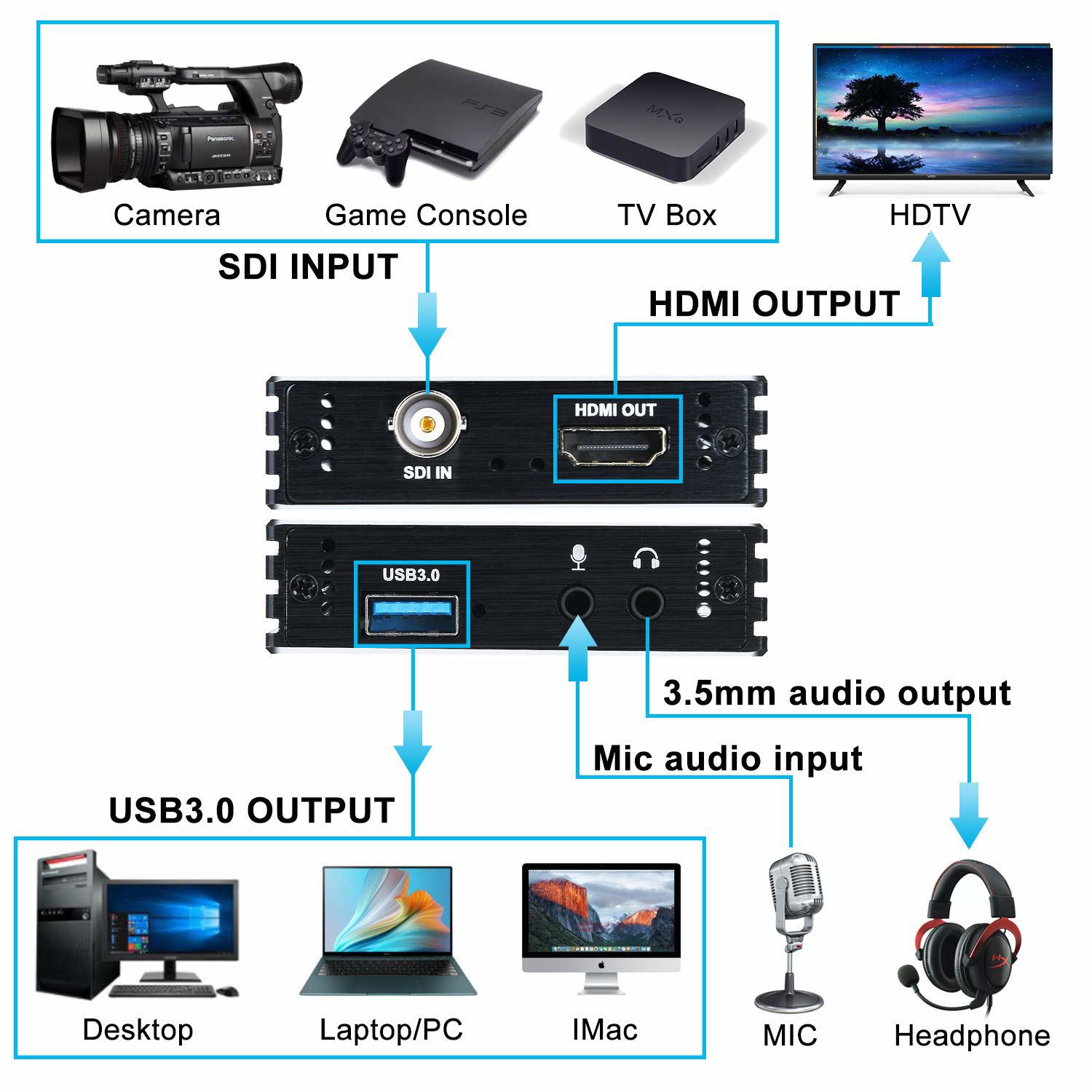

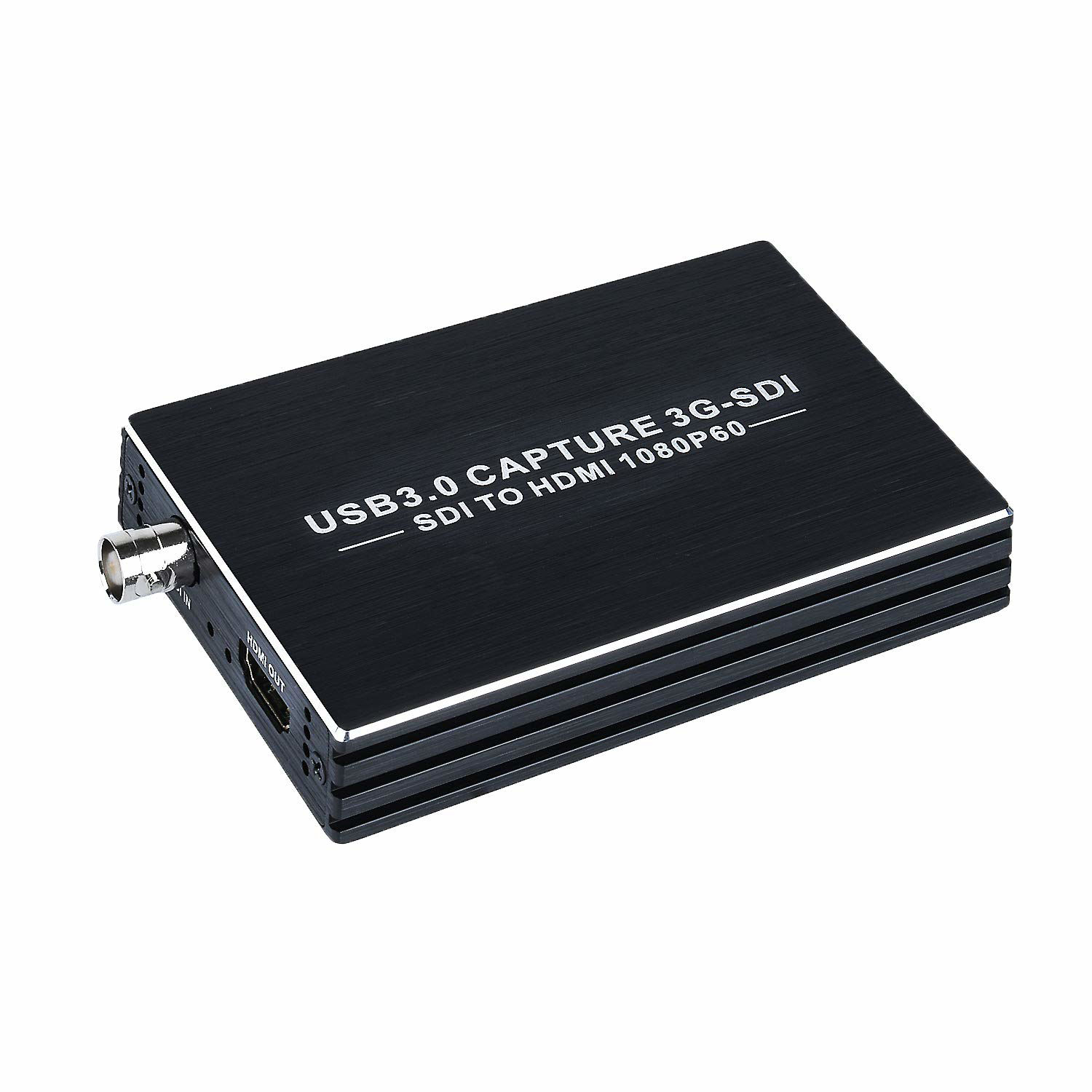

SDI Capture Card USB3.0, SDI to USB3.0 with HDMI Loopout, 1080P 60Fps SDI HDMI Video Capture for Game Streaming Video Recording for Windows, Linux, OSX 3G-SDI capture card: It can capture one 3G-SDI input, output HDMI 1080p and USB 1080p60 signals. The SDI video capture meets UVC and UAC standard, without having to install drivers and settings, plug and play. Specifications Host Interface: USB3.0, *300-350MB/s. USB2.0, *40MB/s Input Interface: SDI interface SDI Input Formats: SD-SDI, HD-SDI, 3G-SDI HDMI Output Formats: 480i, 480p, 576i, 576p, 720p, 1080i, 1080P USB3.0 Output Formats Resolutions: 640×360, 800×450, 1280×720, 960×540, 1920×1080 Frame Rate: 30/ 40/ 48 /50/ 59.94/ 60fps Size: 112x72x19(L/W/H, mm) Weight: 130g Feature Support SD-SDI/HD-SDI/3G-SDI input Support SDI TO HDMI 1080p60 ( HDMI loop output1080p60 ) Support MIC input and audio output It doesn’t need to install a driver, and it is plug and play It is compatible with Windows, Linux, OS X operating systems USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0 The process of video and audio is done by the dongle and will not occupy the CPU It can capture one single channel SDI video signals It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically Package 1 x USB3.0 Capture 3G-SDI Box 1 x USB3.0 Cable 1 x HDMI Cable 1 x User Manual
